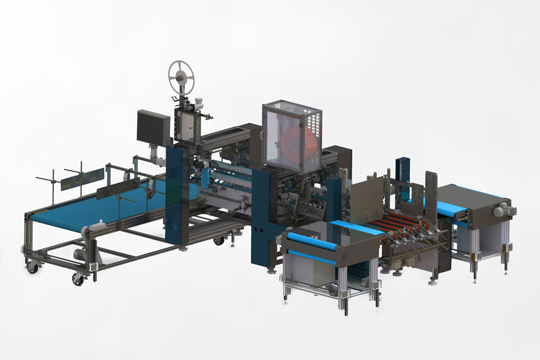

Inter-HST 90

Introduction

With the length of 4,250 meters and weight of around 4 tonnes, our newly designed Inter-HST 90 is capable of processing cardboard format width anywhere between the minimum of 80 millimeters (8 centimeters) and maximum 900 mm (0,9 m). That’s just to give you a taste of what our machine has to offer. The Inter-HST also comes equipped with numerous other features and options and can be easily connected to your existing MPFG for a fully automated production.

Features

Machine Design

  • Open design allows operator to move within the machine
  • Safety during production process is ensured with light barriers
  • Possible configuration on wheels for easier movement of machine in production hall
  • Possibility of connecting to MPFG for fully automated production

Feeder: Perfect aligment is ensured with feeder high flexibilty and various feeding options

  • Feed belts easy adjustment to the left and right
  • Feed belt angle adjusment for most demanding products
  • Dual feed gates with angle adjusment
  • Extendable linear guide bar suppport for larger cartons
  • Possible configuration with Servo motor for better feeding perfromance and independent adjustment

Side register section : Perfect carton alignment for perfect hotmelt and tape quality

  • Double side register section with belts
  • Precise adjsument with angled rollers for various material thickness
  • Standard size 1200mm and optional customizable size

Delivery Conveyor : Small, light and flexible

  • Length 2700 mm and optional customizable
  • Width 900 mm and optional customizable
  • In line or „L“ shape installation
  • Spray element counter and programabille packages counter
  • Two pneumatic gates for better alignment on conveyor

Application section

  • Open design for easy set up of silicone tape applicator, teartape applicator and hotmelt glue
  • Moving applicators from left to right side (and opposite) with linear guides
  • Additional drive for teartape applicators for better teartape quality

Teartape section

  • Pneumatic teartape applicator with speed up to 13.000 pcs/h
  • Servo teartape applicator with speed up to 20.000 pcs/h
  • Tape rupture control

Hotmelt

  • Hotmelt melting unit (with gear pumps) controlled on INTER HST HMI
  • Hotmelt head controlled on INTER-HST HMI
  • Pneumatic pusher for optimal counter pressure on hotmelt head and better hotmelt quality

Control system

  • Specially designed so that the operator has insight and can control the entire work process of the machine
  • Memorable working settings

Specifications

Processed materials

  • Carton boards: max 800 g/m2
  • Corrugated Flute type: G,F,E,D,B,C,A,BC,AB,EE,BE

Capability

  • Speed: 20 to 200 m/min
  • Thickness of folded box: max 40 mm
  • Blank width: 80 mm to 900 mm

Dimension and weight

  • Length: 4.2m
  • Width: 1.5m
  • Net weight: 4 t

Installation

  • Power required: cca. 15 kW,400 VAC
  • Compressed Air: 6 bar
  • Air compressor capacity: 500 l/min
